Cylinder with 5/2 Valve
by Axel Bauer
Version 0.0.2
📅 Updated 2016-03-18
Features Cylinder with 5/2 Valve

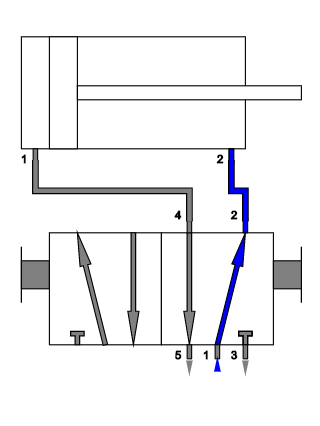

Shows the function of a 5/2 Valve, what controls a Cylinder.Lines with pressure are drawn blue.The switching of the Valve and the retract and extand of the cylinder are animated.The Valve can be switched by clicking on the actuating surfaces or by clicking on a button.
Parts of the pneumatic diagram can be enlarged (zoom).The speed of the animation ist adjustable.
Smart Home
Control and monitor your home with smart features.
Lightning Fast
Experience blazing fast performance with our optimized Android application.
See the Cylinder with 5/2 Valve in Action
Get the App Today
Available for Android 8.0 and above
